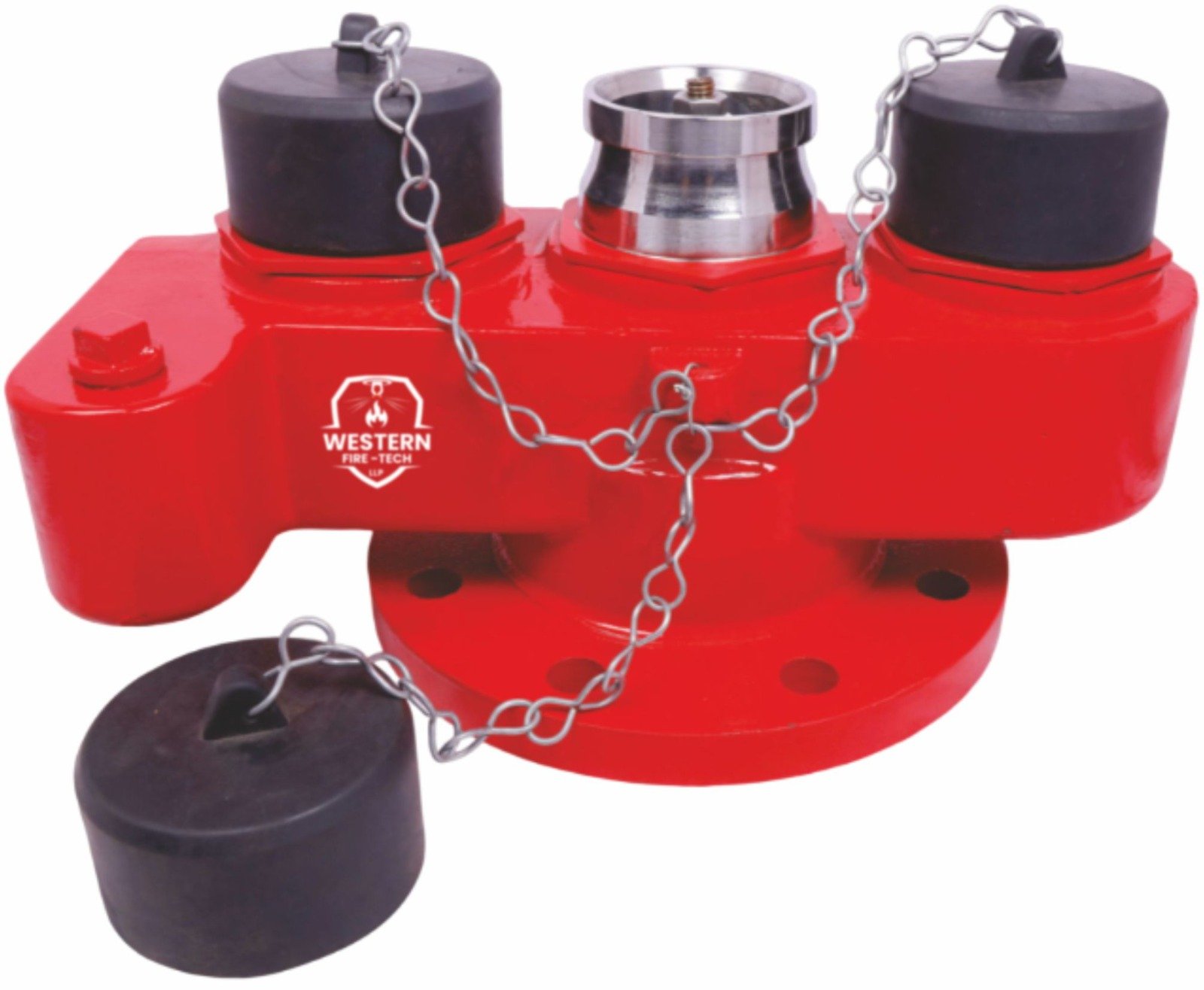

THREE WAY INLET

A Three-Way Inlet (also known as a three-way breeching connection or fire brigade inlet) is an external building connection point that enables fire department tankers to pump high-volume water directly into a wet or dry riser fire protection system. It features three 63 mm male instantaneous inlets—each equipped with a non-return valve—that combine into a single large discharge manifold feeding the main riser pipe, ensuring a powerful and continuous backup water supply for large-scale firefighting operations.
Category:

Specification:

1) Non return valve: Stainless Steel.

2) Flange size:  P.C.D. – 180 mm, O.D. – 220 mm, I.D. – 100 mm.

3) No. of hole:  08 Nos.

4) Dia of hole:  19 mm

Weight 15.0 kg Approx
